Button
Supplier item link
Select the correct item number if the supplier displays several variants on the same product page. Price snapshot from 9 September 2026.Troubleshooting – step by step
Buttons that can be used for alarm or agreed control functions. The function depends on the configuration.
Wireless · Jeweller
Elotec article number and purchase price: not retrievedColor, frequency and availability must be confirmed.
Use and Maintenance
Arrange maintenance and any test with the monitoring station before opening equipment. Note the model and location. Opening a device may trigger tamper even when the intrusion alarm is disarmed.
Batteribytte: 1 × CR2032
- Arrange testing before starting; a press may send a real alarm.

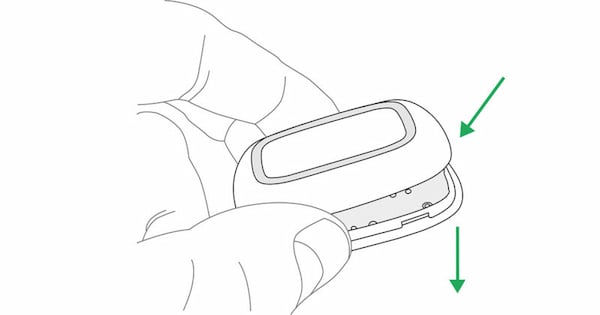

- Carefully separate the housing halves with a thin, flat tool.
- Fit a new CR2032. The positive marking must match the circuit board marking.
- Reassemble the housing. Perform the agreed test press.
- Check battery status in the app; Button updates this after a press.
Use new, undamaged batteries. Do not mix new and old. Keep button cells unavailable for children. Battery status may take some time to update.
Original battery guide for this model
Use only the agreed function and your assigned code. Check confirmed alarm status after operation; a pressure alone does not confirm that the central has received the command.
For installer: location and installation
- Check the exact model, panel, region and connection type.
- Open the original manual's location and installation section below.
- Follow the model's illustrations for mounting, wiring and tamper protection.
- Complete the relevant signal and functional tests before handover.
Documents and missing
- User guide
Norwegian maintenance summary. Not a complete replacement for the original manual.
- Originalmanual / installasjon
Model-specific original manual with illustrations.
- Tekniske spesifikasjoner
Online specifications. Check variant and region; separate datasheet-PDF is not verified.
- Produsent
Ajax Systems.
- Elotec
Suppliers provided by the Safety Group. Model Elotec article, product link and price have not been verified.
- Videos and software
General training channel. Model-specific film and own software connection are not verified.
Help when the product does not work
Wireless sensor: Read battery and connection state in the system. For low battery, use the model battery guide and check the battery type and whether it is replaceable. Note new metal objects or other changes near the sensor.
Choose the symptom and check the model scope before following the steps. This is troubleshooting, not a list of confirmed product defects.
General advice — model-specific fault procedure missing.
Control or alarm button: no confirmed response
Applies to: General advice for the sensor type — not a verified procedure for this model. Use the model manual for opening, battery type, testing and settings.
- Check that you are using the correct device for the system. Record lights, beeps and messages without repeatedly triggering alarms.
- If you need help now, use the agreed alternative contact method. A flash alone does not confirm that the monitoring service received an emergency signal.
- Arrange a test with the receiver and follow the model instructions for button presses or code entry. Obtain receiver confirmation.
Check the result: The correct command or test alarm is confirmed by the system/receiver.
Stop and get help: Do not test hold-up alarms without notice or share PINs. Contact support if confirmation is missing.
Background source / example model (not model verification): support.ajax.systems — open documentation
